Liquid Instruments provides contemporary, software-based test and measurement solutions that offer cutting-edge features, user-friendly interfaces, and customizable programming options to achieve optimal flexibility and performance across various applications.
Set up your test system in minutes
Updates to software and instruments over the air
Connect and switch between 10+ instruments easily
Control experiments wirelessly
More benchtop space with small footprints
Replace multiple pieces of equipment with a single professional-grade device at an affordable price and get the unmatched combination of
performance and flexibility.
One comprehensive platform for the most demanding research and engineering applications.

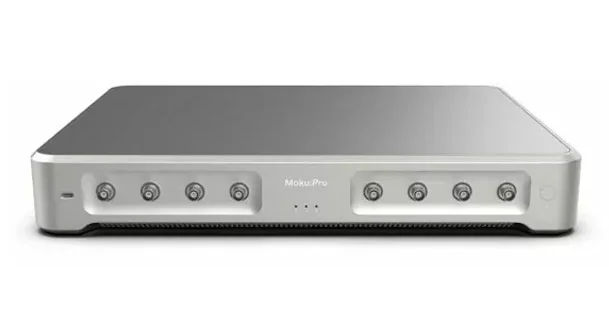

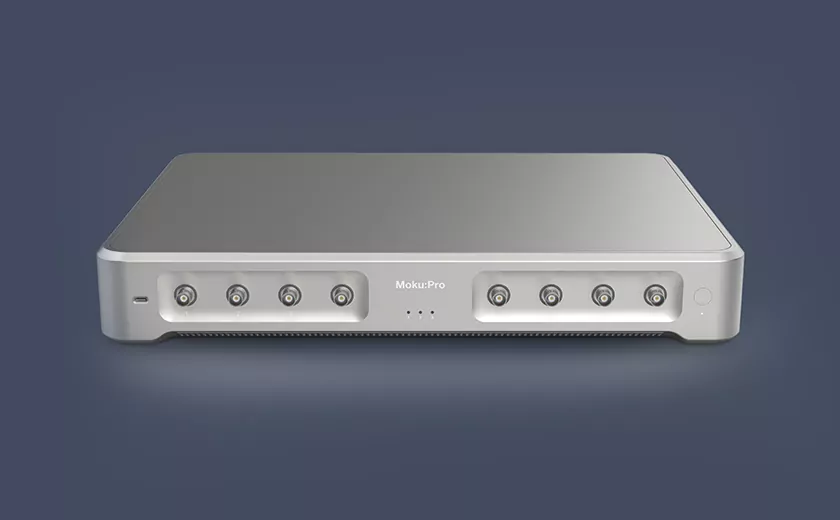

Through a complex FPGA-based design, a high-bandwidth, low-noise analog front end, and reliable networking and storage, Moku:Pro provides both performance and versatility. All the instruments are instantly available, without compromising performance for versatility.
From acoustic to radio frequencies, a novel hybrid front-end design performs frequency-dependent signal blending from numerous ADCs, giving superior noise performance. Engineers and researchers can streamline their test benches or even take the lab home with 10+ on one single platform.
Flexible device for the next generation for testing and measuring.

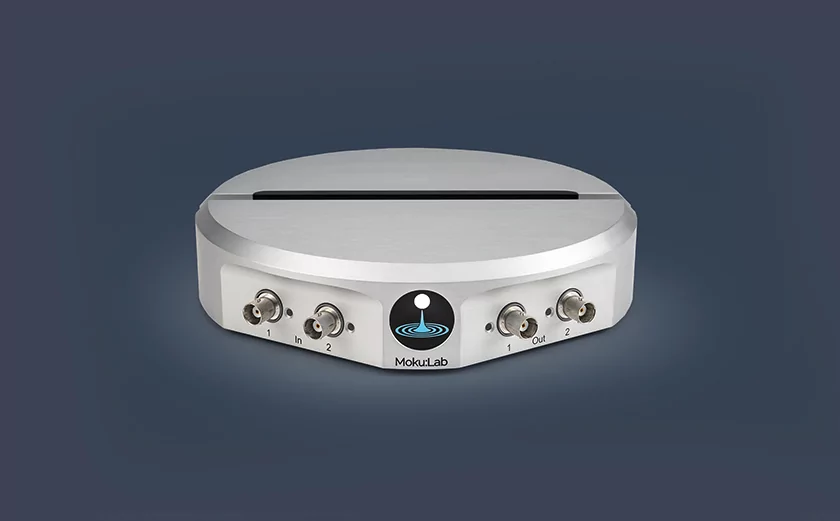

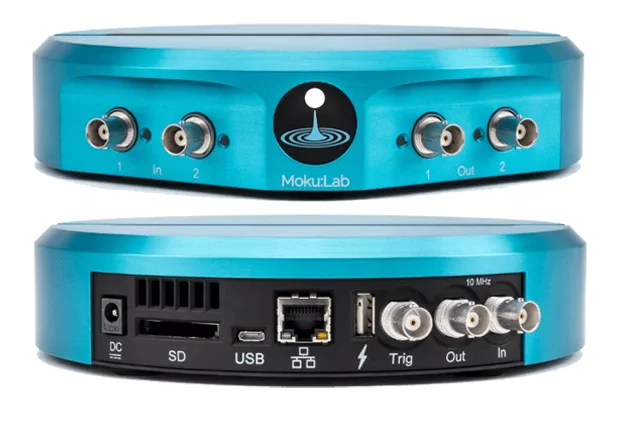

Moku:Lab is a programmable hardware platform that combines an FPGA's digital signal processing power with a variety of analog inputs and outputs. This streamlines your process by providing you with access to 12 high-performance instruments that allow you to measure exactly what you need when you need it.
The all-in-one engineering lab solution that you can carry with you everywhere you go.

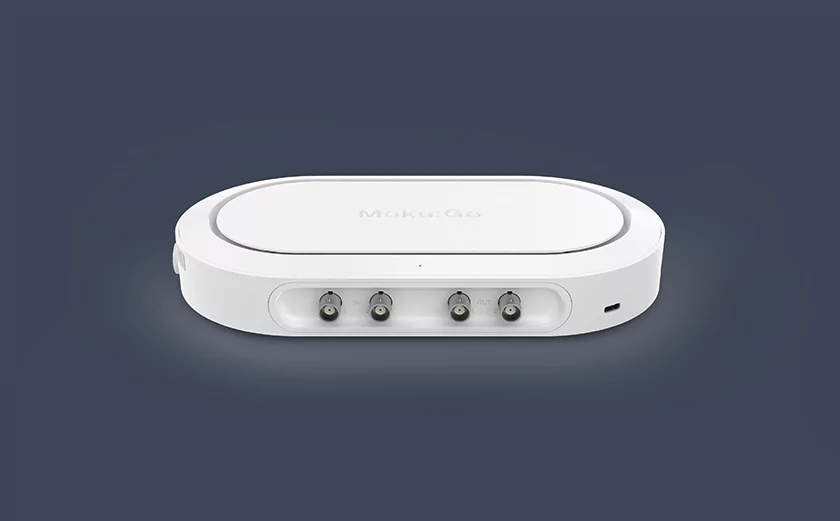

Engineers and students can use Moku:Go as a complete lab solution to actively test designs and projects. Moku:Go can do work anywhere with 11 instruments, a full range of connectivity, and various configurable power supplies, removing the need for large bench top equipment.

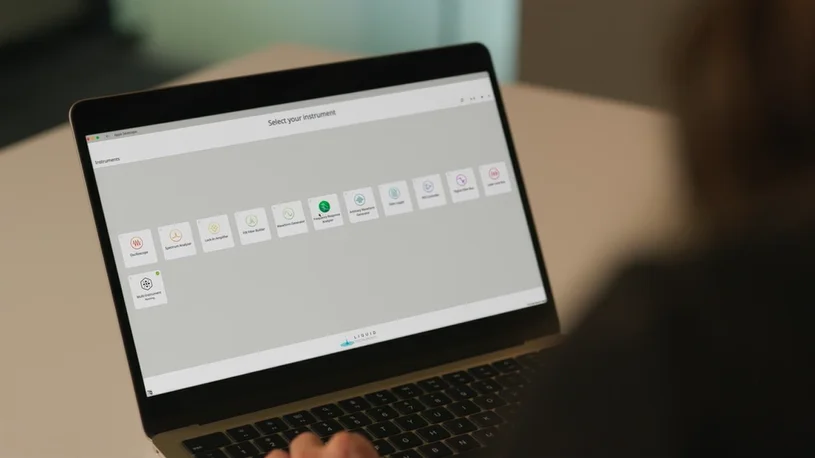

For Windows and Mac, an intuitive user interface (UI) is available, as well as API support that connects with the rest of your work. It has considered every detail to ensure that engineers and students have a test solution that will follow your ideas wherever they go.
Moku devices take advantage of an FPGA's processing capability and reconfigurability to allow you to quickly deploy the instruments you require. Our seamless hardware and software integration provides outstanding versatility across a broad range of applications.
Select a hardware platform based on your desired specs
Select the instruments you need
Once your moku device arrives, install the moku software and start testing
Select the hardware platform that best fits your application. With every platform, you’ll get the freedom and flexibility you need. Regardless of which hardware platform you choose, you’ll enjoy a consistent software experience.

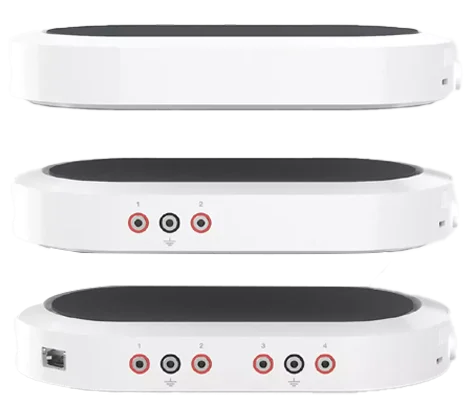

The engineering lab that fits in the palm of your hand
Weight: 1.7lb/750g
35 MHz input bandwidth
125 MSa/s input channels
16-channel digital I/O
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Lock-in Amplifier
Logic Analyzer / Pattern Generator
Oscilloscope / Voltmeter
PID Controller
Spectrum Analyzer
Waveform Generator
Gain a competitive edge with real-time 3D in a rapidly evolving industry landscape.
Weight: 3.5lb/1.6kg
200 MHz input bandwidth
500 MSa/s input channels
300 MHz output bandwidth
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator
The most powerful platform for technology development
Weight: 14.77lb/6.7kg
600 MHz input bandwidth
Up to 5 GSa/s input channels
500 MHz output bandwidth
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator
